Type GRY Verzinkt / gegossen

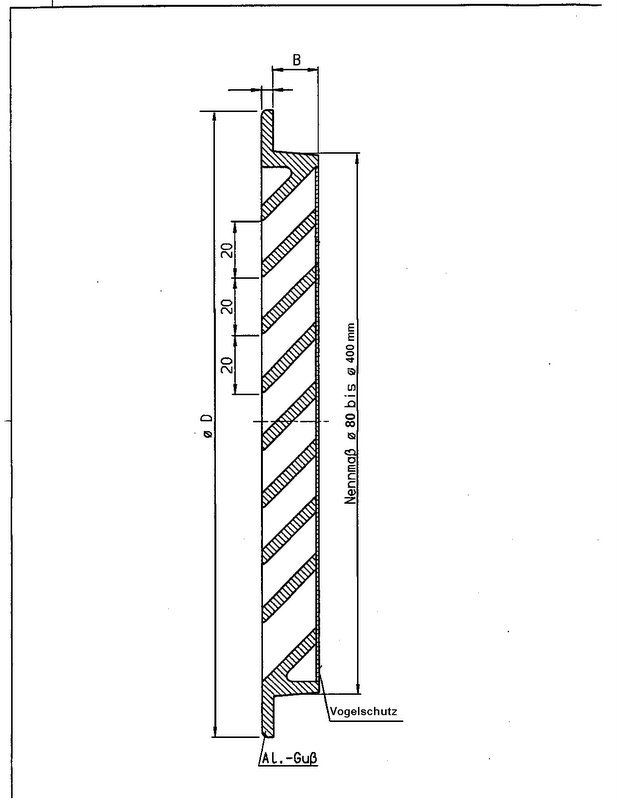

Runde Wetterschutzgitter Type GRY aus gegossenem Aluminium
Round weather protection grille typ GRY made of cast aluminum

von 100 mm bis 500 mm gegossenes Aluminium
von 315 mm bis 2000 mm Verz. /  VA Stahlblech
from 100 mm to 500 mm cast aluminum
from 315 mm to 2000 mm galvanized / VA sheet steel

Type GRY - Alu
Rundes Wetterschutzgitter aus gegossenem Aluminium, roh, Frontrahmen ca. 20 mm ungebohrt,
inkl. Vogelschutz, Nippelmaß für direkte Rohrmontage

Type  GRY - Verzinkt
Rundes Wetterschutzgitter aus Stahlblech, im Vollbad verzinkt, Frontrahmen ca. 25 mm ungebohrt,
inkl. Vogelschutz, Nippelmaß für direkte Rohrmontage

Type GRY - Rostfrei
Rundes Wetterschutzgitter aus rostfreiem  Stahlblech (1.4301 / 1. 4571) , Frontrahmen ca. 25 mm ungebohrt,
inkl. Vogelschutz aus V2A, Nippelmaß für direkte Rohrmontage

________________________________________________________________________________________________________________________________________________________

Typ GRY - Alu
Round weather protection grille made of cast aluminum, raw, front frame approx. 20 mm, undrilled,
incl. bird protection, nipple dimension for direct pipe installation

Typ GRY - Galvanized
Round weather protection grille made of sheet steel, galvanized in full bath, front frame approx. 25 mm undrilled,
incl. bird protection, nipple dimension for direct pipe installation

Typ GRY - stainless
Round weather protection grille made of stainless steel sheet (1.4301 / 1.4571), front frame approx. 25 mm ,undrilled,
incl. bird protection made of V2A (1.4301), nipple dimension for direct pipe mounting

Rundrohranschlussmaße
Durchmesser Alu, gegossen

Round pipe connection dimensions
Diameter aluminum, cast
    DN 100 mm
    DN 125 mm
    DN 160 mm
    DN 200 mm
    DN 250 mm
    DN 315 mm
    DN 400 mm
    DN 500 mm

Durchmesser, verzinkt, rostfrei, Lack nach RAL
Diameter, galvanized, rust-free, paint according to RAL
    DN 400 mm
    DN 500 mm
    DN 560 mm
    DN 600 mm
    DN 630 mm
    DN 710 mm
    DN 800 mm
 DN 1000 mm
 DN 1250 mm
 DN 1500 mm
 DN 1800 mm
 DN 2000 mm
