Gemäß Type -V- jedoch ohne Frontrahmen und mit RundrohranschlussAccording to typ -V- but without front frame, with additional round tube connection

Wetterschutzgitter gemäß Type V , jedoch ohne Frontrahmen, mit Rundrohranschluss
Type VK-O
- aus seewasserbeständigem Aluminium (Al Mg³), mit hintergebautem, verzinkten Vogelschutz, jedoch
in Sonderausführung mit angebautem, verzinkten Rundrohranschluss - aus rostfreiem Stahlblech (1.4571 / 1.4301), mit hintergebautem, rostfreien Vogelschutz aus V2A (1.4301),
jedoch in Sonderausführung mit angebautem, rostfreien Rundrohranschluss - aus Kupfer, mit hintergebautem, rostfreien Vogelschutz aus V2A (1.4301), jedoch
in Sonderausführung mit angebautem, rostfreien (1.4301) Rundrohranschluss - aus verzinktem Stahlblech, mit hintergebautem, verzinkten Vogelschutz, jedoch
in Sonderausführung mit angebautem, verzinkten Rundrohranschluss
__________________________________________________________________________________________________________________________________________

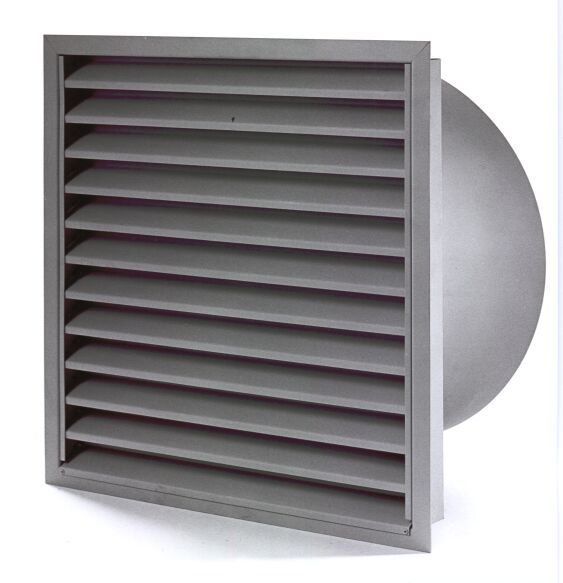

Weather protection grille according to Type V, but without front frame, with round tube connection
Typ VK-O
- made of seawater resistant aluminum (Al Mg³), with galvanized bird protection, but in special version with attached,
galvanized round tube connection - made of stainless steel sheet (1.4571 / 1.4301), with rustproof bird protection made of V2A (1.4301),
but in special version with attached, round stainless steel connection - made of copper, with rustproof bird protection made of V2A (1.4301), but in special version with mounted,
stainless (1.4301) round tube connection - made of galvanized sheet steel, with galvanized bird protection, but in special version with attached,
galvanized round tube connection

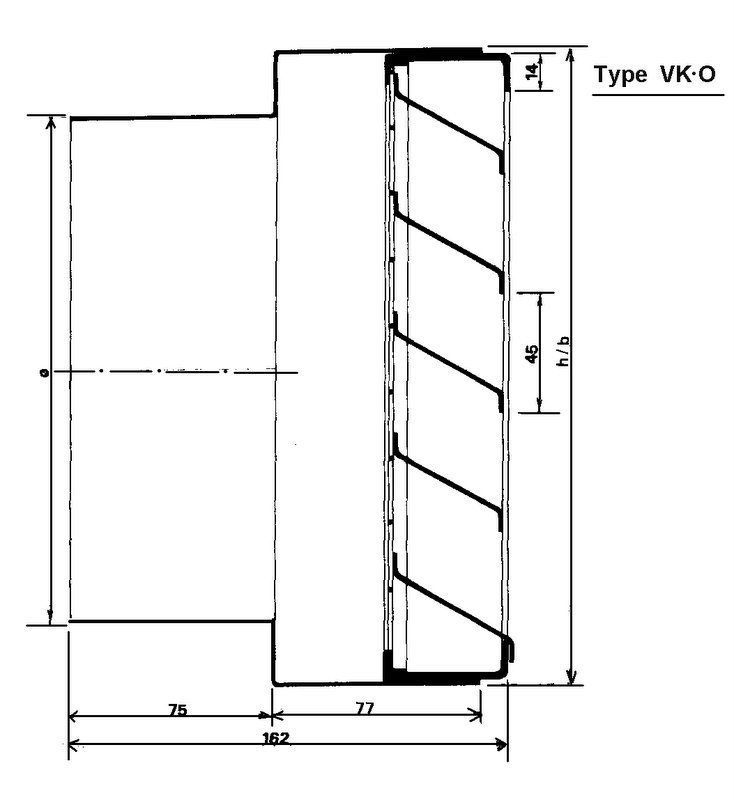

Round pipe connection dimensions
Rundrohranschlussmaße
Grid dimensions b x h diameter
Gittermaße b x h Durchmesser
205 / 205 DN 160 mm
225 / 225 DN 180 mm
245 / 245 DN 200 mm
269 / 269 DN 224 mm
295 / 295 DN 250 mm
325 / 325 DN 280 mm
345 / 345 DN 300 mm
360 / 360 DN 315 mm
400 / 400 DN 355 mm
445 / 445 DN 400 mm
495 / 495 DN 450 mm
545 / 545 DN 500 mm
605 / 605 DN 560 mm
675 / 675 DN 630 mm
755 / 755 DN 710 mm
845 / 845 DN 800 mm
Wetterschutzgitter gemäß Type V , jedoch ohne Frontrahmen, mit Rundrohranschluss
Type VK-O
- aus seewasserbeständigem Aluminium (Al Mg³), mit hintergebautem, verzinkten Vogelschutz, jedoch
in Sonderausführung mit angebautem, verzinkten Rundrohranschluss - aus rostfreiem Stahlblech (1.4571 / 1.4301), mit hintergebautem, rostfreien Vogelschutz aus V2A (1.4301),
jedoch in Sonderausführung mit angebautem, rostfreien Rundrohranschluss - aus Kupfer, mit hintergebautem, rostfreien Vogelschutz aus V2A (1.4301), jedoch
in Sonderausführung mit angebautem, rostfreien (1.4301) Rundrohranschluss - aus verzinktem Stahlblech, mit hintergebautem, verzinkten Vogelschutz, jedoch
in Sonderausführung mit angebautem, verzinkten Rundrohranschluss
__________________________________________________________________________________________________________________________________________
Weather protection grille according to Type V, but without front frame, with round tube connection
Typ VK-O
- made of seawater resistant aluminum (Al Mg³), with galvanized bird protection, but in special version with attached,
galvanized round tube connection - made of stainless steel sheet (1.4571 / 1.4301), with rustproof bird protection made of V2A (1.4301),
but in special version with attached, round stainless steel connection - made of copper, with rustproof bird protection made of V2A (1.4301), but in special version with mounted,
stainless (1.4301) round tube connection - made of galvanized sheet steel, with galvanized bird protection, but in special version with attached,
galvanized round tube connection
Round pipe connection dimensions
Rundrohranschlussmaße
Grid dimensions b x h diameter
Gittermaße b x h Durchmesser
205 / 205 DN 160 mm
225 / 225 DN 180 mm
245 / 245 DN 200 mm
269 / 269 DN 224 mm
295 / 295 DN 250 mm
325 / 325 DN 280 mm
345 / 345 DN 300 mm
360 / 360 DN 315 mm
400 / 400 DN 355 mm
445 / 445 DN 400 mm
495 / 495 DN 450 mm
545 / 545 DN 500 mm
605 / 605 DN 560 mm
675 / 675 DN 630 mm
755 / 755 DN 710 mm
845 / 845 DN 800 mm
